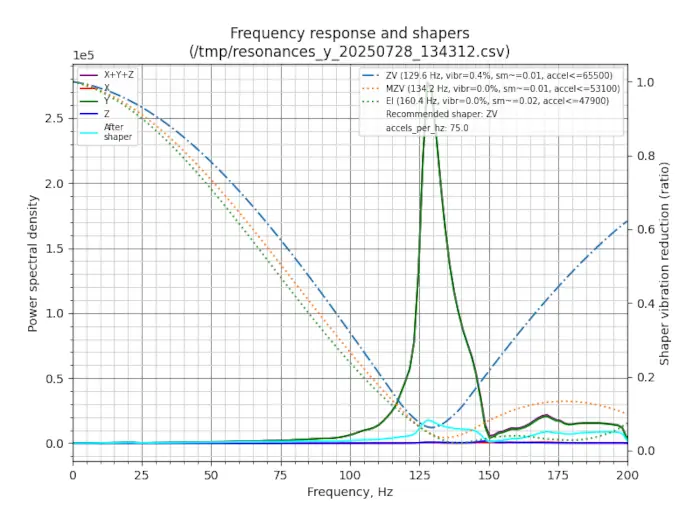

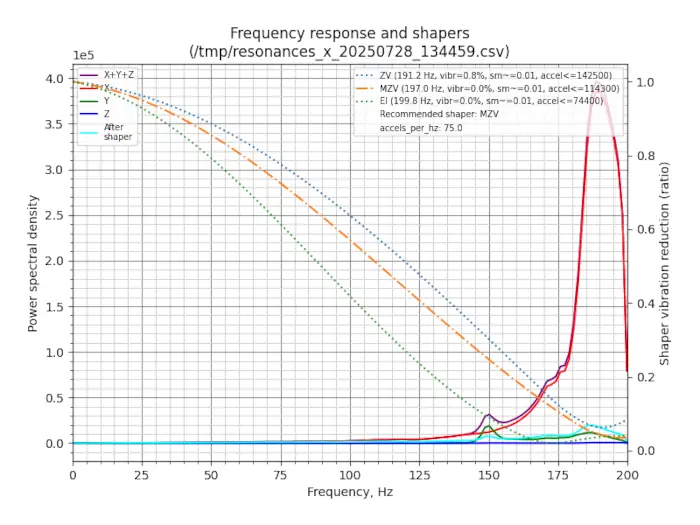

Input Shaper Graphs 2 - Monolith Zero

I've decided to post second one right after the first for easier comparison.

Changes for part 2:

• 2.5A instead of 1.7A (the tophat crown works well as a heatsink)
• Blocky gantry parts for more stiffness with plastic
• Y-rails mounted to short 1515s instead of printed plates
• Slightly heavier moving mass because of the beefed-up XY-joints and X-carriage
• Software AWD sync enabled

The gains are significant, but extrapolating from my V2 results (driven belt length, moving masses, belt width), we're still far from approaching this machine's IS potential similarly.

The overall good results we're already seeing with plastic make me confident about the M0's future IRL performance with panels and a metal gantry.
