Update on the XY Joints - Gantry

· · Members Area post from

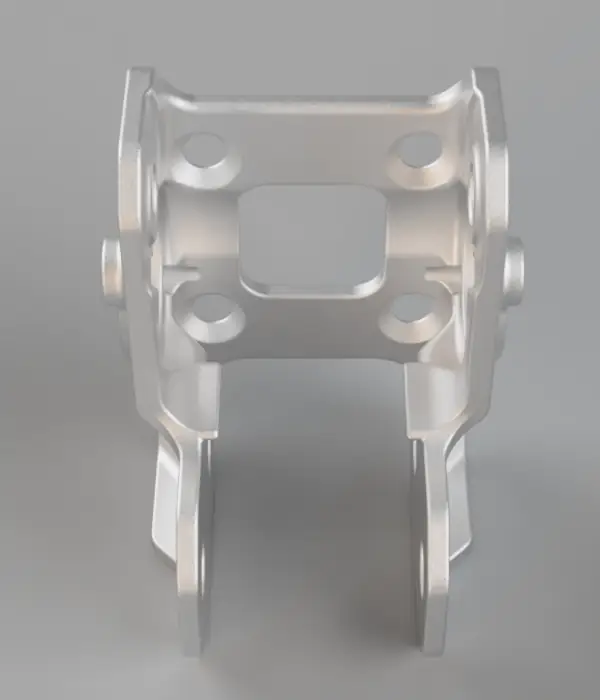

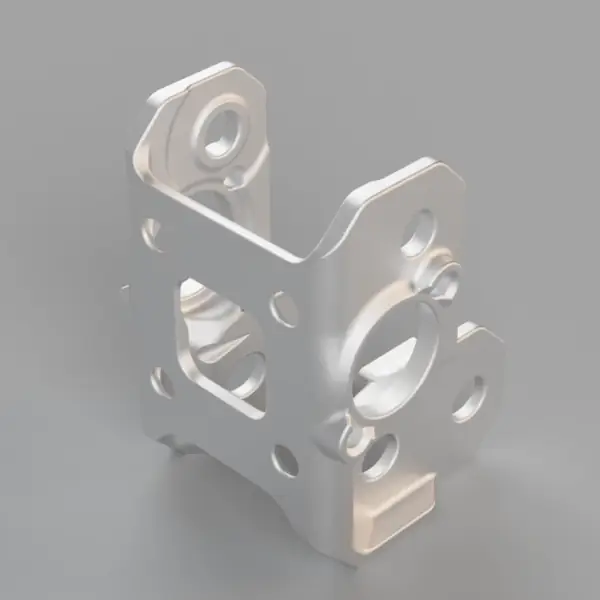

SLM MGN12H XY Joints

We've already discussed resolving the issues we have with the SLM MGN12H XY joints.

I've made numerous changes behind the scenes over the last month:

  • New print orientation for less warping (Adeo's idea)
  • Single-piece design for better alignment
  • Bearing retainer screws from the outside, just like on the sheet metal design
  • Much smoother features, more suitable for SLM

If these changes don't improve things significantly, I think I'll give up on the idea of MGN12H XY joint with such a tight belt path. If it does work out well, I'm open to diving into this deeper to make it smoother/better.

SLM MGN12H XY Joints SLM MGN12H XY Joints
