#Belt

As mentioned before, I’m going back to prioritizing the toolhead development over everything else, which entails making some improvements to the universal belt clamp design that many of us have already been using. A derivative of this will obviously go into the updated toolhead itself…

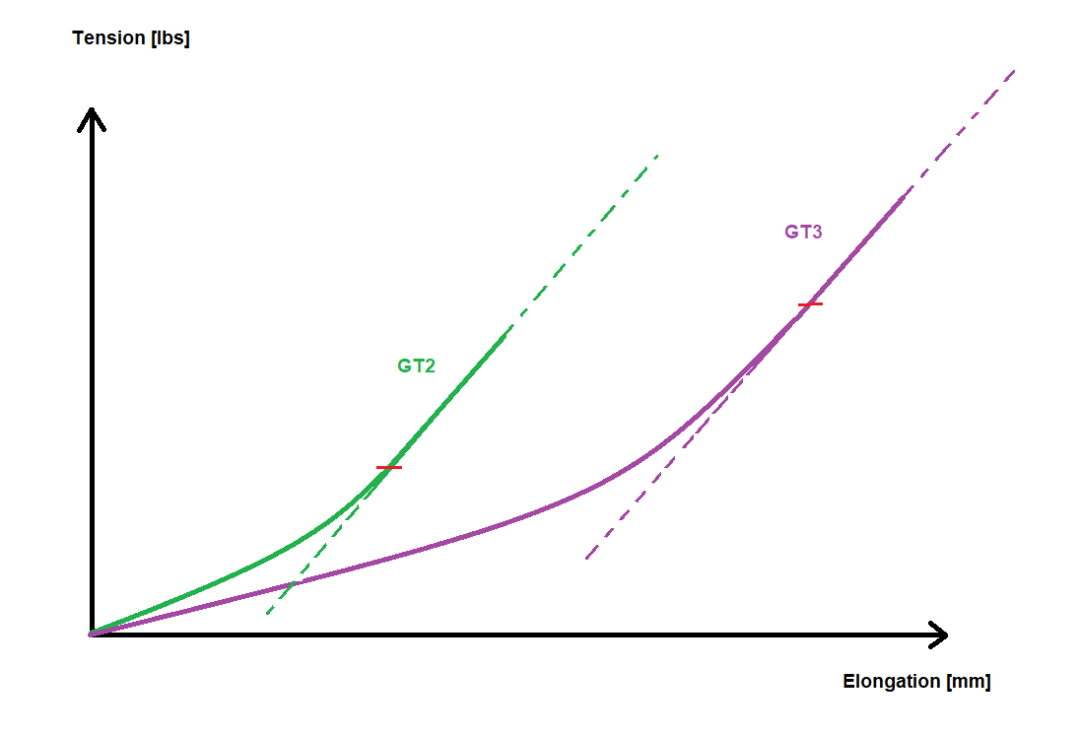

Unfortunately, I've only been able to do 12mm AWD testing and it would make more sense to do this in a more belt-bottlenecked scenario. Similarly to CPU gaming performance testing, one should run the tests with the best available GPU and in 1080p with low graphics settings…

I ended up making 2 types of belt clamps with different clearance benefits. I can't wait to see what implementations you guys come up with!…

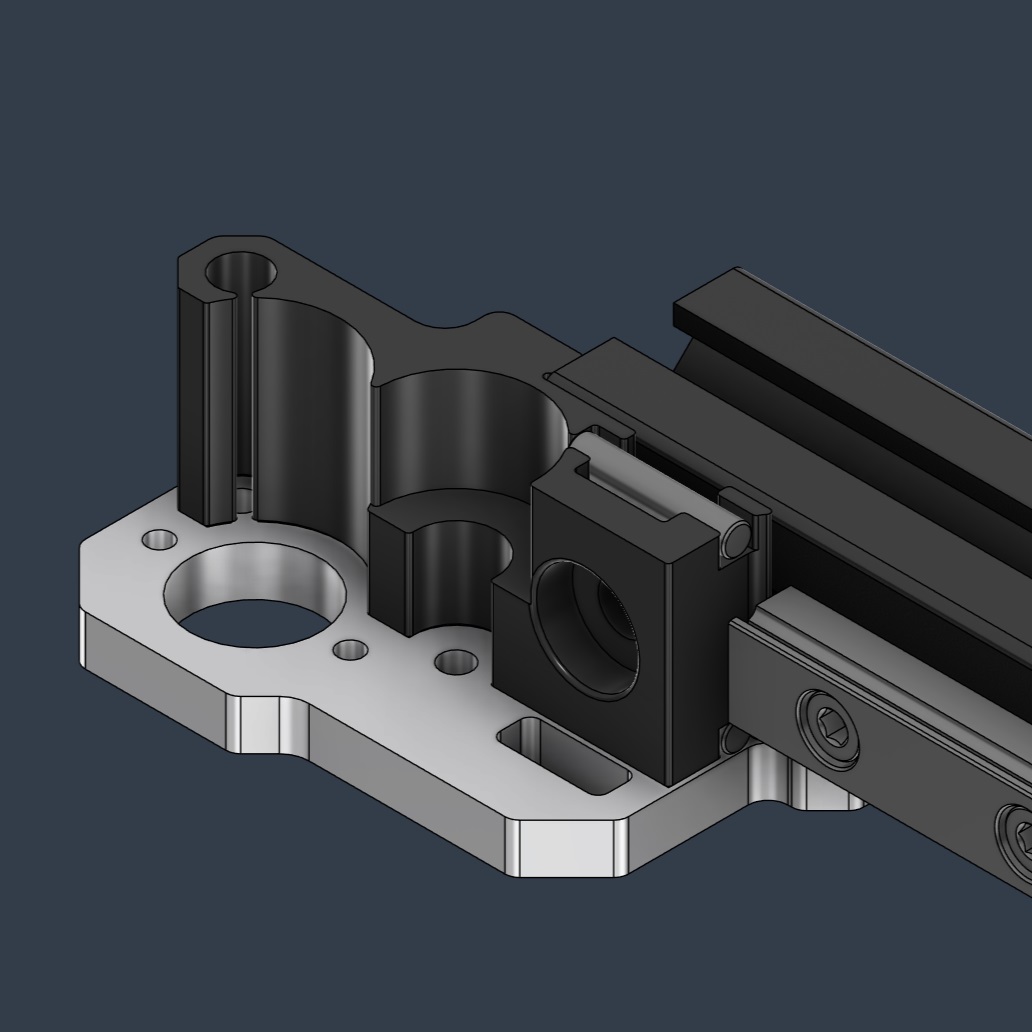

Today I looked at the possibility of implementing the same Z-belt pin method, that's present in the CNC kits into the sheet metal one…

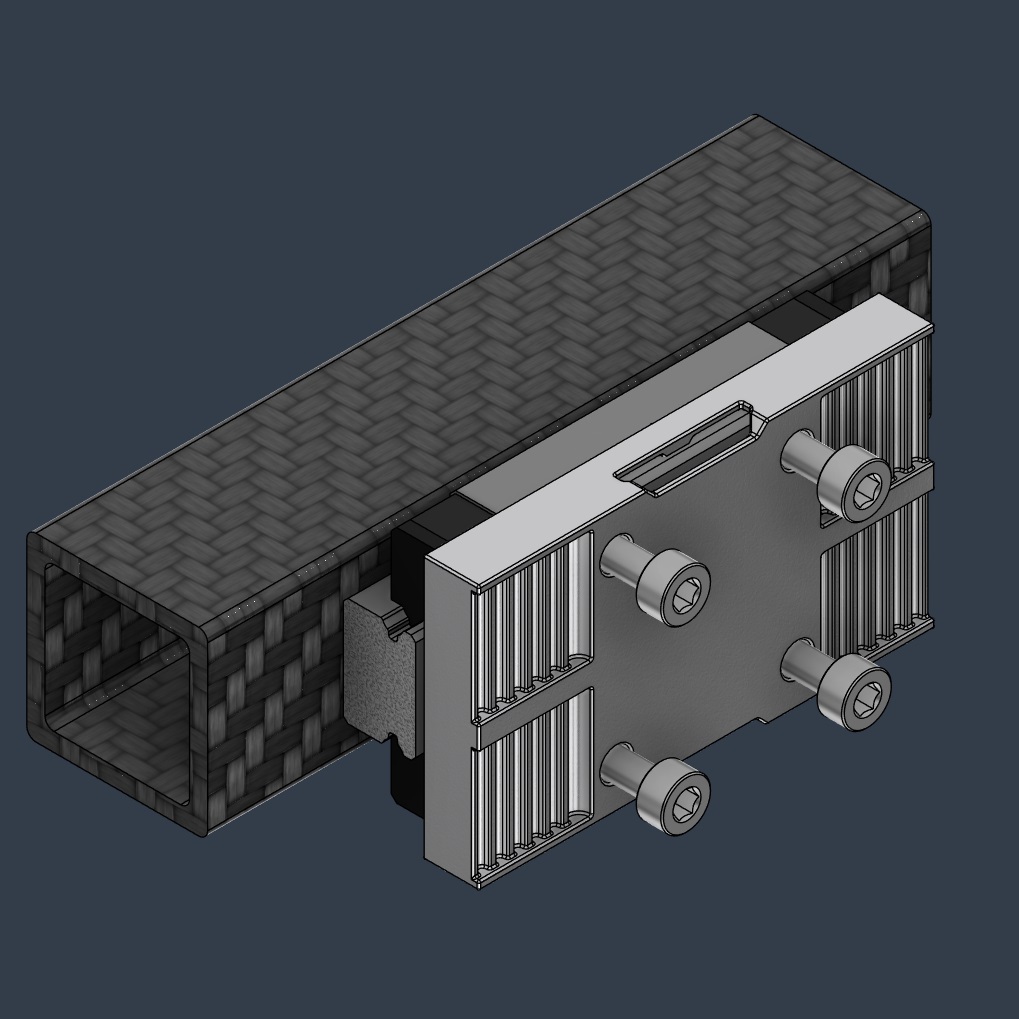

The Monolith's flipped belt path is one belt's thickness away from the X MGN12H carriage's surface. Therefore, it's possible to design a thin SLM belt clamp around the carriage with the following design goals:…
